Sheets (rolls) Energomax®

Описание

Sheets (rolls) Energomax® made of foamed polyolefin plastomer (POP)

Sheets (rolls) Energomax® is an effective solution for insulation large diameter pipes, fittings and vessels for various purposes.
They are made of the latest polymer – foamed polyolefin plastomer (POP) and combine the advantages of two of the most common insulation materials: foamed polyethylene and flexible elastomeric foam.
Designed for use in heating, water, ventilation, air conditioning and refrigeration systems.
It have excellent insulation properties in a wide temperature range, low water absorption and steam permeability.
Plastic, well glued, can be heat welded to form strong and tight seams, which makes their installation technological and fast.

  • Non-toxic
  • Environmentally friendly
  • Fully recyclable
Wide temperature range allows to use instead of flexible elastomeric foam.
Combine high plasticity, mechanical resistance and an attractive appearance.

Характеристики

Feature Value Method
Thermal conductivity, λ0, W/(m•°С) 0,036 GOST 7076-99
Maximum service temperature,°С + 105 GOST 32312-2011
Minimum service temperature,°С – 80 Specification of producer
Reaction to fire G1 GOST 30244-94
Water vapour diffusion resistance µ, not less 7000 GOST EN 12086-2011
Corrosion safety Resistance to aggressive construction materials – cement, concrete, gypsum, lime
Environmental aspects Chlorofluorohydrocarbons and sulfur free

Ассортимент

Item Article Thickness Width Length Quantity per roll
Sheet (roll) Energomax® 6/1,0-20 EMXR06120 6 mm 1 m 20 m 20 m2
Sheet (roll) Energomax® 9/1,0-10 EMXR09110 9 mm 1 m 10 m 10 m2
Sheet (roll) Energomax® 13/1,0-7 EMXR1317 13 mm 1 m 7 m 7 m2
Sheet (roll) Energomax® 20/1,0-5 EMXR2015 20 mm 1 m 5 m 5 m2
Sheet (roll) Energomax® 25/1,0-4 EMXR2514 25 mm 1 m 4 m 4 m2

Цены

Цены

Упаковка

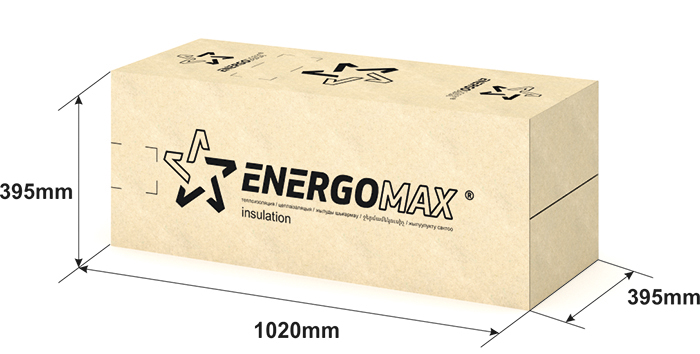

Packed into cartons with dimensions of 1020 x 395 x 395 mm.

standard size thickness, mm width, m length, m quantity per package, м2 gross weight, kg package volume, м3
6/1,0-20 6 1 20 20 5,84 0,160
9/1,0-10 9 1 10 10 5,13 0,160
13/1,0-7 13 1 7 7 5,03 0,160
20/1,0-5 20 1 5 5 5,23 0,160
25/1,0-4 25 1 4 4 5,46 0,160
